That’s an interesting question, LHJ !

I think the following community members may be able to help

@Marc Mueller

@Vatsy

@Zaid Chougle

@Tamil Arasu10

@madhu subbegowda

@jackson

@HARUN KUMAR

@NewTushitha

@Azhar Hossain

@kdil

@Padmakumar

Hi ​@LHJ,

I believe Parameters is not correct.
Could you please revise the method like a  below and remove the content type?

Hi ​@LHJ

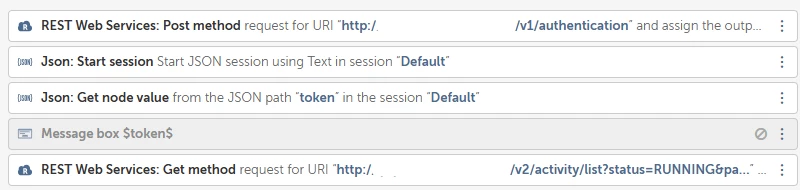

Based on your issue and what I can see, ​​​​​​

• First URL (/v2/activity/list?...): Gave a 404 Not Found --> The endpoint likely doesn't exist or is incorrect.
• Second URL (/v1/devices): Gave a 401 Unauthorized --> The authentication method or token format is likely incorrect or missing.

Lets take step-by step to fix this:

1. Make sure the base URL + endpoint you're using is correct:
   For checking running bots in Automation Anywhere Control Room, the endpoint is typically:
   https:///v2/activity/list?status=RUNNING&page=1&size=100

       Check:

• Is http://myurl.com.tw the correct Control Room URL?
• Is the API version (v1 vs v2) correct?

If you are unsure verify it via https://docs.automationanywhere.com/bundle/enterprise-v2019/page/enterprise-cloud/topics/control-room/control-room-api/cloud-control-room-apis.htmlor from your Control Room → API Swagger UI.

2. Your current setup:
   X-Authorization: Bearer $token$

   But for v2 APIs, the expected header is:

   Authorization: Bearer <access_token>
   So update the header name from X-Authorization to Authorization.

3. Ensure you are:
   You’re passing the exact same token returned from your POST login method.
   You’re not using a stale/expired token.
   You don’t include extra spaces/quotes in the variable.

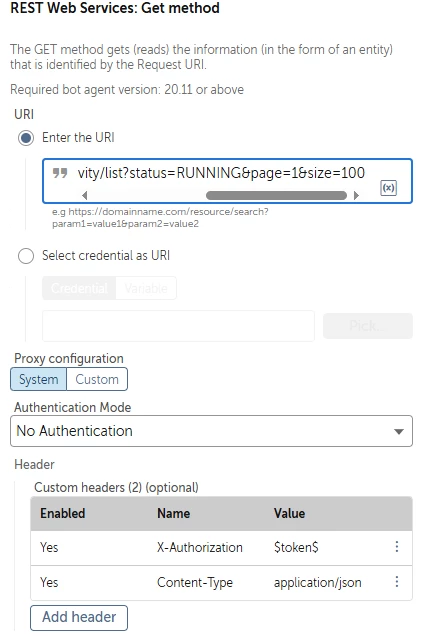

4. Try updating your REST Web Services: Get method configuration as:

• Authentication Mode: No Authentication
• Header:

1. Name: Authorization
2. Value: Bearer $token$
3. Name: Content-Type
4. Value: application/json
5. And ensure the full URI is like: https://your-controlroom-url.com/v2/activity/list?status=RUNNING&page=1&size=100

Also, make sure if your Control Room uses HTTPS, always use https:// (not http://). And try calling the API in Postman or browser to validate the token and endpoint first, before using in bot.

Happy to assist!

Hi ​@LHJ,

I believe Parameters is not correct.
Could you please revise the method like a  below and remove the content type?









Hi Tamil Arasu10,
I update the header name from X-Authorization to Authorization and got a 401 error after execution.
Every time I execute, I start by getting a token from the post request.
Does this mean the token is not valid?

Hi madhu subbegowda,
I confirmed that my URL and API version are correct,
and I also modified the header as mentioned in my previous reply, resulting in a 401 error.
Does this mean the token is not valid?

Hi ​@LHJ, Could you please try with postman and If that works, replicate the same for A360

Hi ​@LHJ  - yes — it likely means the token is invalid or not accepted by the endpoint.

1. Token Format

• Check how the token is being passed.
• If you're using X-Authorization: $token$, try changing it to the standard:

makefile

CopyEdit

Authorization: Bearer <your_token>

In Automation Anywhere’s REST Web Services package, this would be:

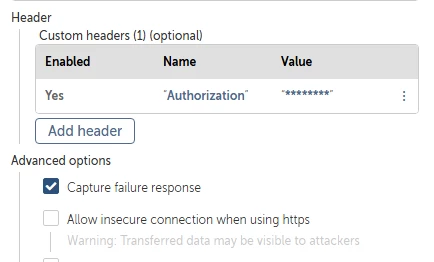

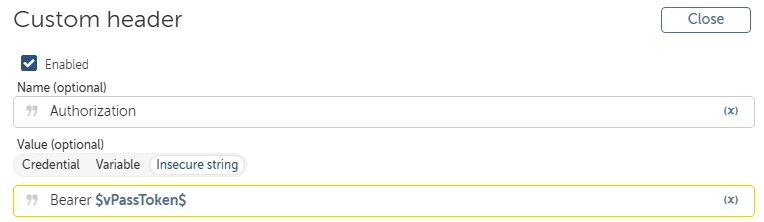

• • Header Name: Authorization
  • Header Value: Bearer $token$

2. Token Scope / Permissions

• Ensure that the token you obtained has permission to access the /v2/activity/list endpoint.
• Some tokens are restricted based on roles or scopes (e.g., admin vs. bot runner).

3. Token Expiration

• Tokens often expire within minutes or hours. Make sure you are using a freshly generated token.

4. API Base URL vs Endpoint Version

• Confirm that /v2/activity/list is supported by your Control Room’s version.
• Some endpoints (like /v1/devices) may work with the token, while newer /v2/* might need elevated access or a different token type (e.g., OAuth vs. basic auth token).

5. Confirm Token in Postman or Curl

• If possible, test the same call using Postman with:
  • Authorization header set as: Bearer <your_token>
  • This can help isolate whether the problem is in the bot or the token itself.

Example Header Setup:

{

  "Authorization": "Bearer eyJhbGciOiJIUzI1NiIs...",

  "Content-Type": "application/json"

}

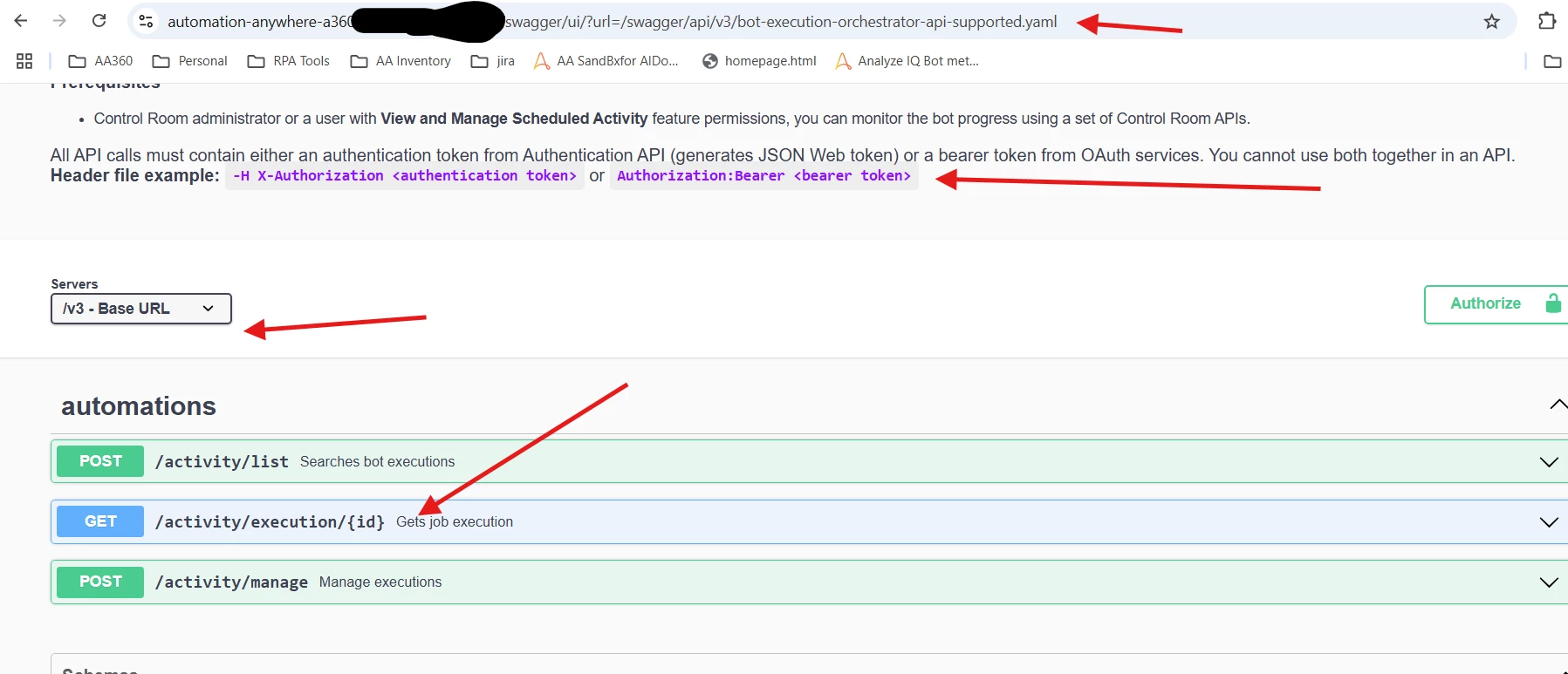

​@LHJ what is the Version of A360 you are using, if V31 execution orchestrator apis are in V3


Also you can get list of apis by using https://url/swagger
