Document Automation - Unstructured Data Learning Instance AARI Request Failed

  • January 21, 2026
  • 5 replies
  • 43 views

Forum|alt.badge.img+1

Hi,

I created a learning instance with Unstructured Data as the document type. However, when processing the document, the request fails at the extraction stage.

When I use Bill of Lading or User defined as the document type, the extraction works correctly and the document moves to the validation stage.

Could you please help identify the possible reason for this behavior and advise how I can make the extraction work with the Unstructured Data document type?

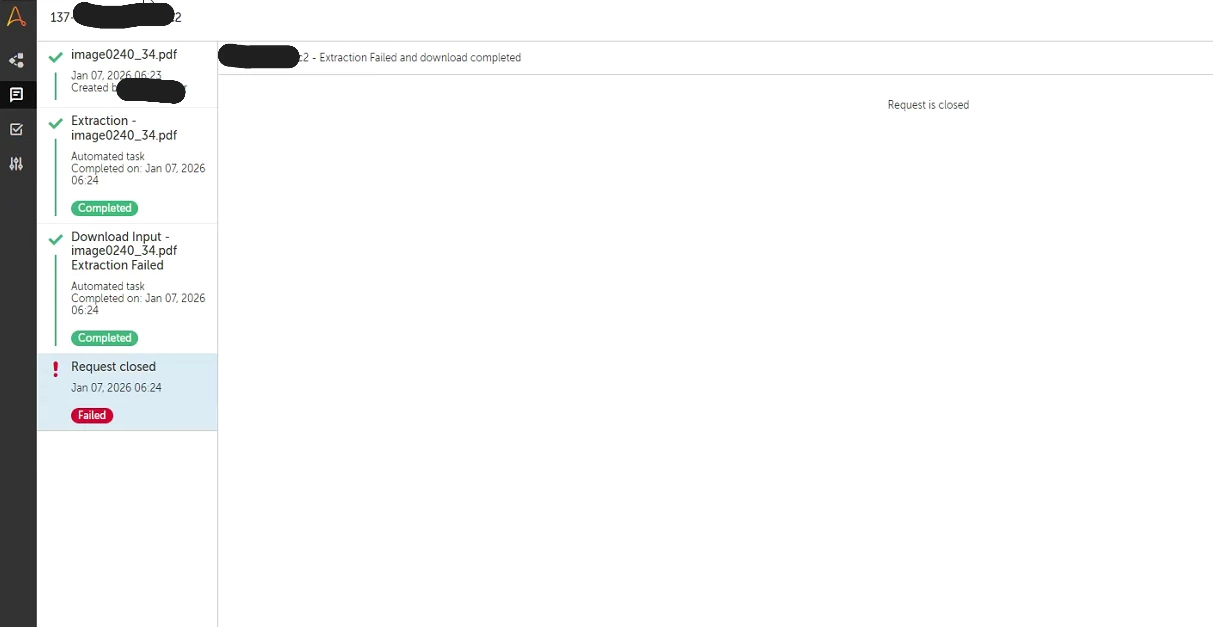

Below is the screenshot of the AARI request page.




5 replies

Aaron.Gleason
Automation Anywhere Team
Forum|alt.badge.img+14
  • Automation Anywhere Team
  • January 21, 2026

@Manik.Sharma31 The only difference in those document types is the use of AI. Check with your IT department to see if the use of AI is allowed for document extraction.


Forum|alt.badge.img+1
  • Author
  • Cadet | Tier 2
  • January 21, 2026

Hi ​@Aaron.Gleason ,



Since this is being executed within the Automation Anywhere Control Room and I believe Document Automation inherently uses AI for extraction, could you please advise what exactly needs to be validated from the local IT department’s side?

Specifically, we would like to understand:

  • What AI-related permissions, policies, or services need to be enabled for Document Automation to work with Unstructured Data document types

  • Whether there are any network, firewall, proxy, or security restrictions that could block AI-based extraction in Automation Anywhere

  • How we can confirm if AI usage is allowed and properly configured for Automation Anywhere in our environment (Control Room level)

Any guidance on what the local IT team should check or enable would be very helpful. Or should I raise a support ticket with Automation Anywhere?


Aaron.Gleason
Automation Anywhere Team
Forum|alt.badge.img+14
  • Automation Anywhere Team
  • January 21, 2026

@Manik.Sharma31 Is this an on-prem control room or a cloud control room? This question is pivotal.

If it is on-prem, your IT department should easily be able to tell what was blocked. They probably already know if they’re paying attention to the firewall logs.

If it is cloud, we have to look at this a completely different way.


Forum|alt.badge.img+1
  • Author
  • Cadet | Tier 2
  • January 21, 2026

@Aaron.Gleason It is a cloud control room.


Aaron.Gleason
Automation Anywhere Team
Forum|alt.badge.img+14
  • Automation Anywhere Team
  • January 21, 2026

@Manik.Sharma31 Using Wireshark, it appears there may be some calls to *.algolia.net to do some of the generative AI queries, possibly called from the Bot Agent.

Your IT department can check their firewall logs for any blocked DNS queries or sites, too.
